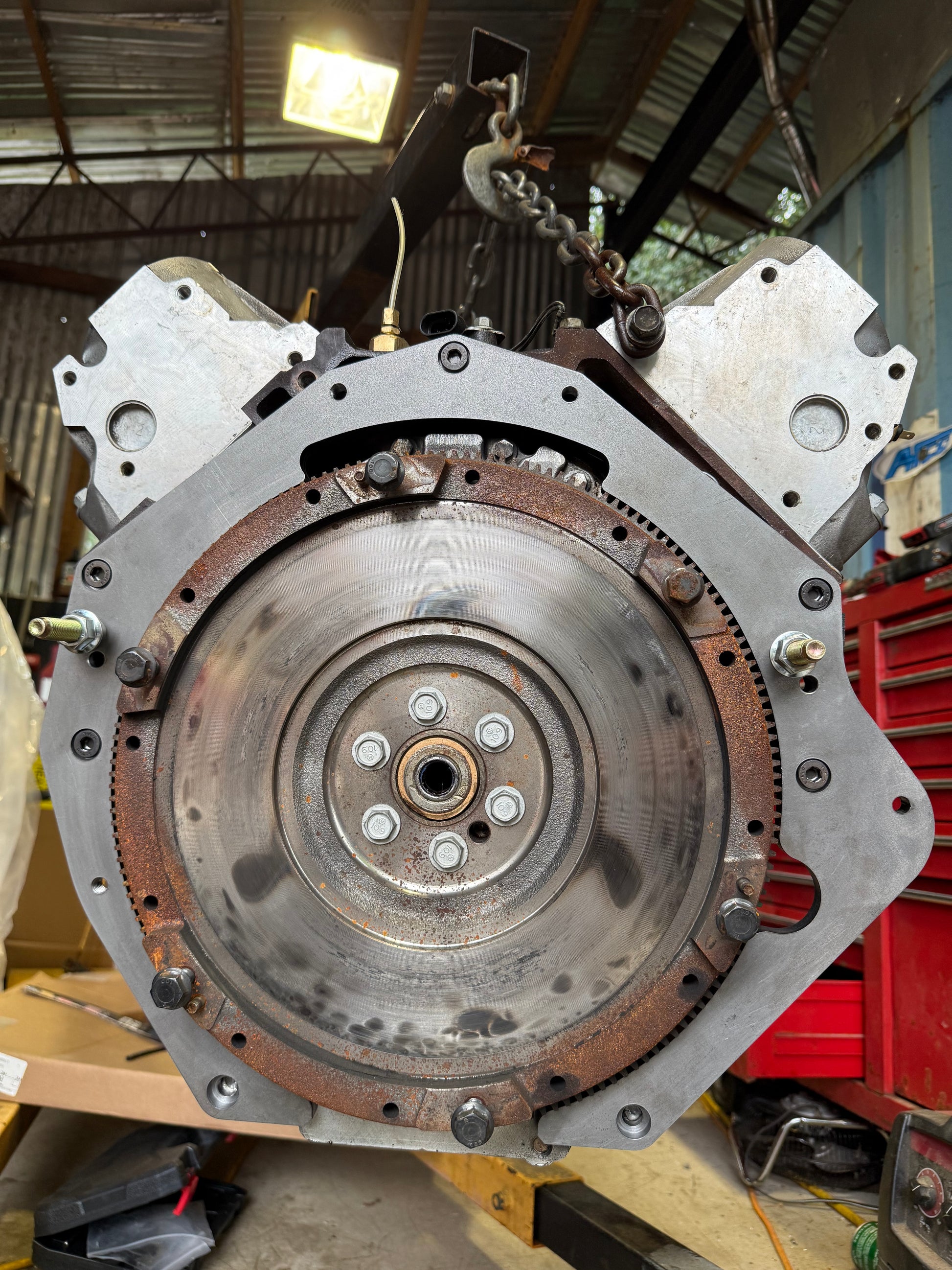

Heavy Metal T45/TR3650 to LS Steel Plate

Heavy Metal T45/TR3650 to LS Steel Plate

$269.00 USD
$269.00 USD
Sale Sold out
  • ***Made to Order***
  • Canadian Customers expect to pay duty from shipper. Please enter a valid phone number when ordering.
  • Material - 1/2" Mild Steel Plate
  • Fasteners - All Fasteners and GM/Ford Locating Features Provided
  • LS Pan Support Feature Fasteners Included
  • Customer sources:
    • Aftermarket Compact Starter
      • Plate Could be Modified by Customer for Factory Starter
    • Clutch Disc
      • Mustang Disc for Donor Transmission
    • Pressure Plate
      • 98-02 Camaro/Firebird LS1
    • Flywheel
      • 98-02 Camaro/Firebird LS1
    • Pilot Bearing
      • DIW Pilot Available Separately
    • Adjustable Throwout Bearing
      • Mcleod Racing 16515 - Cable Clutch Fork Applications
      • May be able to space clutch pivot instead. Check clutch fork to pressure plate clearance.
    • Shims for Internal Throwout Bearings late TR3650
        • Multiple customers have reported 0.875"(7/8") works well. DIW spacer set available separately.
